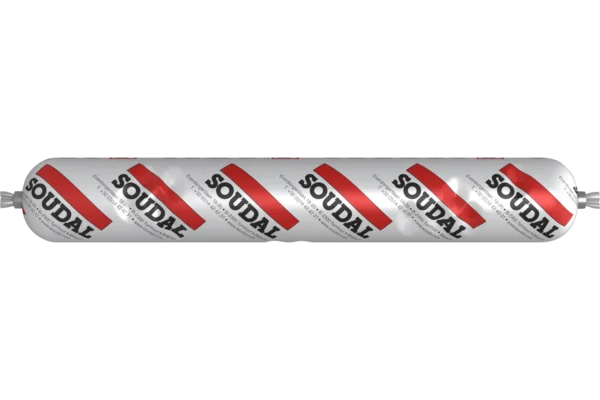

Name: MS-Polymer tubular bag 600ml assembly adhesive
SKU: 3634
Availability: InStock

In tubular bag Packaging unit: 12 pieces

SKU: 3634 Categories: Accessories, Mounting adhesive Tags: Klima Konform Standard, Klima Konform V-Fixx, Substructure insulating profile, Window sill connection

All products

For mounting components made of Compacfoam MS polymer adhesives have proven themselves on construction sites on rough substrates such as concrete or masonry. Above all, they offer high initial strength. In many cases, this enables the Compacfoam components directly under dead load without further fixing. External loads can usually only be applied after the adhesive has cured.

Specially designed for processing Compacfoam Materials of all classes.

Color: white
Available in 290ml cartridges
PU: 12 pieces in a box

Sintered highly compressed EPS	CF100	CF125	CF150	CF200	CF300	CF400	CF200eco	Standard
Gesintertes hochverdichtetes EPS								Standard
Compressive strength (N/mm²)
for 10% compression	1,13	1,64	1,95	3,53	5,85	11,03	2,62	EN 826
for 2% compression	0,73	0,81	0,98	1,93	3,01	4,31	1,54	EN 826
Characteristic compressive strength (N/mm²)	1,02	1,48	1,55	3,19	5,19	9,97	2,37	EN 14358
Rated value of compressive strength (N/mm²)	0,71	1,02	1,07	2,21	3,59	6,90	1,42
Safety factors	ym=^1,3/k mod=^0,9								ym=^1,5/k mod=^0,9
Calculation value for Serviceability (N/mm²)	0,62	0,69	0,83	1,64	2,56	3,66	1,23
E-modulus (N/mm²)	28,7	38,4	45,5	99,4	168,7	269,8	73	EN 826
Screw extraction
Screw extraction* ⌀ 7.5mm (N)	837	919	1.179	1.875	2.677	4.047	1.380	i.a. EN 14358
Screw cross tension* ⌀ 7.5mm (N)	296	394	493	542	1.012	1.333	954	i.a. EN 14358
Screw extraction* ⌀ 4.5mm (N)	505	565	747	979	1.729	2.829	701	i.a. EN 14358
Cross bolt tension* ⌀ 4.5mm (N)	103	112	150	214	319	500	320	i.a. EN 14358
Thermal conductivity
Rated value (W/mK)	0,0387	0,0377	0,0423	0,0459	0,0531	0,0650	0,045	EN 12667
Water vapor diffusion resistance coefficient	~25									EN 12086-1
Building material behavior in case of fire	E (B1) schwer entflammbar									EN 13501-1, DIN 4102-1
Max. Water absorption capacity 28 days	~5%									EN 12087
