Window construction

Substructure insulating profile (UDP)

The floor recess for doors and floor-to-ceiling elements places high demands on substructure insulating profiles. These are met with CFeco.

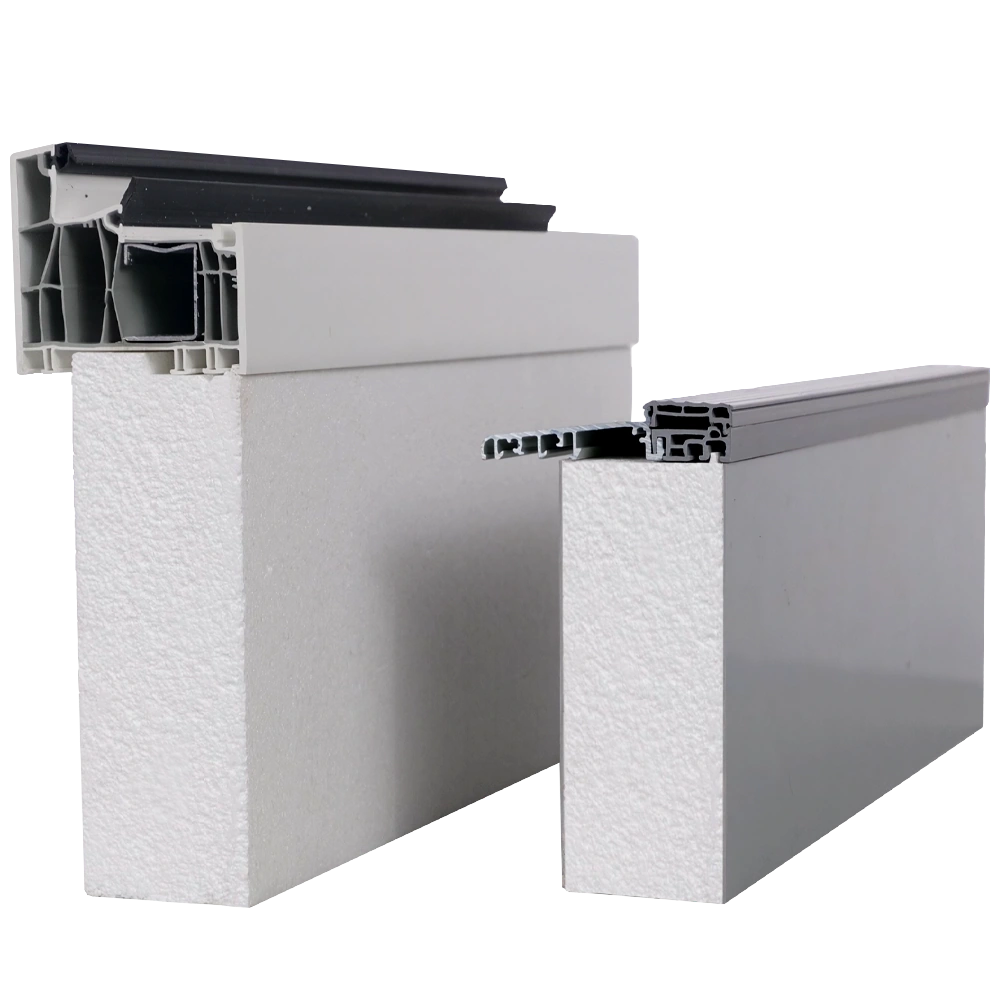

The COMPACFOAM substructure insulating profile (UDP) combines strength with excellent thermal insulation and a very low dead weight. With the UDP, you can ensure the desired floor clearance for patio doors, front doors and windows. The stable, waterproof construction material means that it can be fixed from all sides.

    • Economical and safe

    Advantages

    Moisture and frost resistant

    Firm screw connection without chipping in all directions

    No long-term change in dimension and strength

    Highly resilient

    Simple processing

    Tested sealing systems

    Counter milling for all profile systems

    Surface also available with PVC top layer

    Rot-proof and wood-free material

    Best insulating properties

    Fire class B1

    Configure & Request

    Details

    Technical drawings

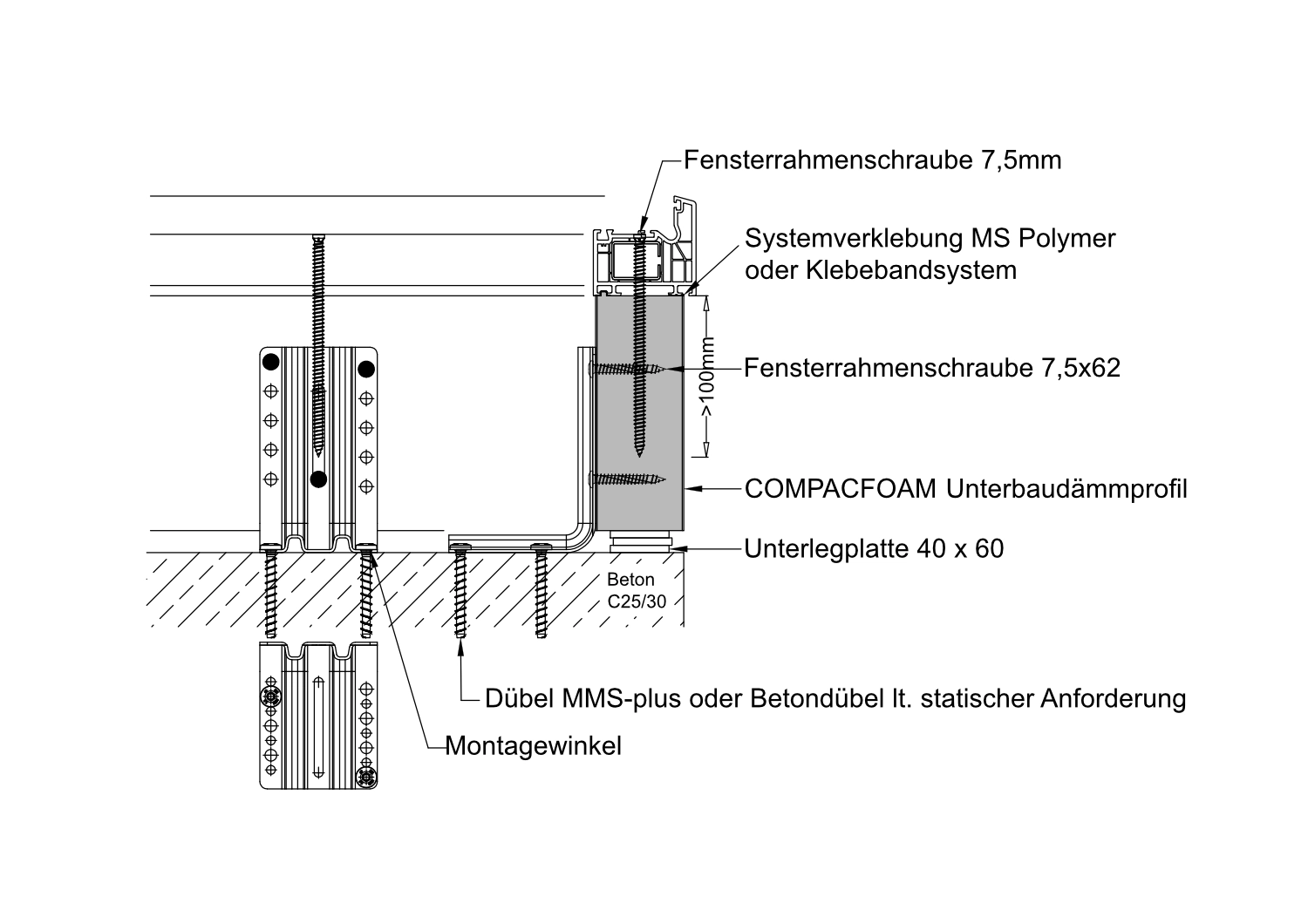

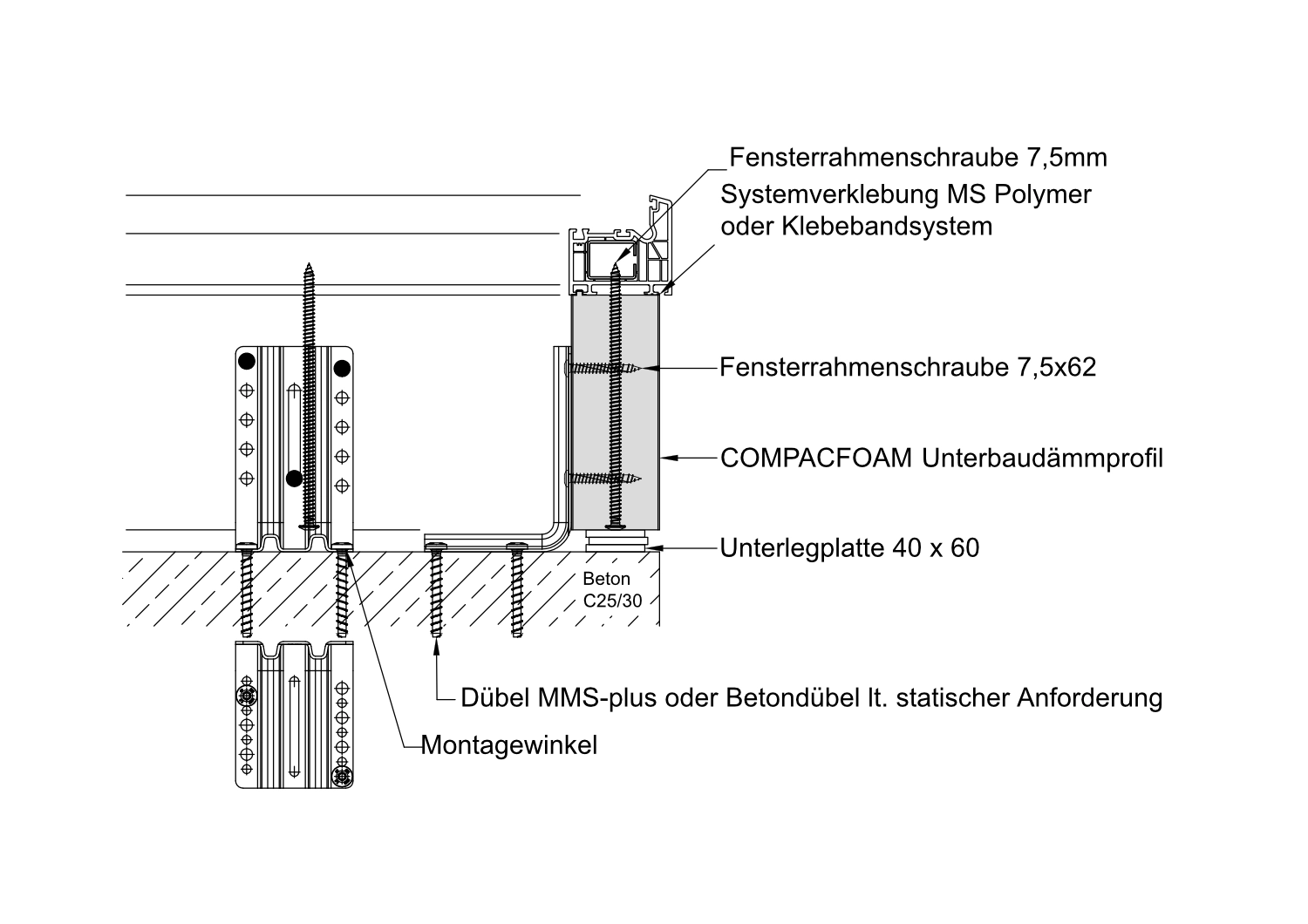

    Installation variant with highly insulating substructure insulating profiles suitable for all door sills and window frames.

    Dimension

    Dimensions:

    Standard length – 2350mm, max. length – 6000mm

    ready-made length, width and profile depth and special lengths

    Surfaces:

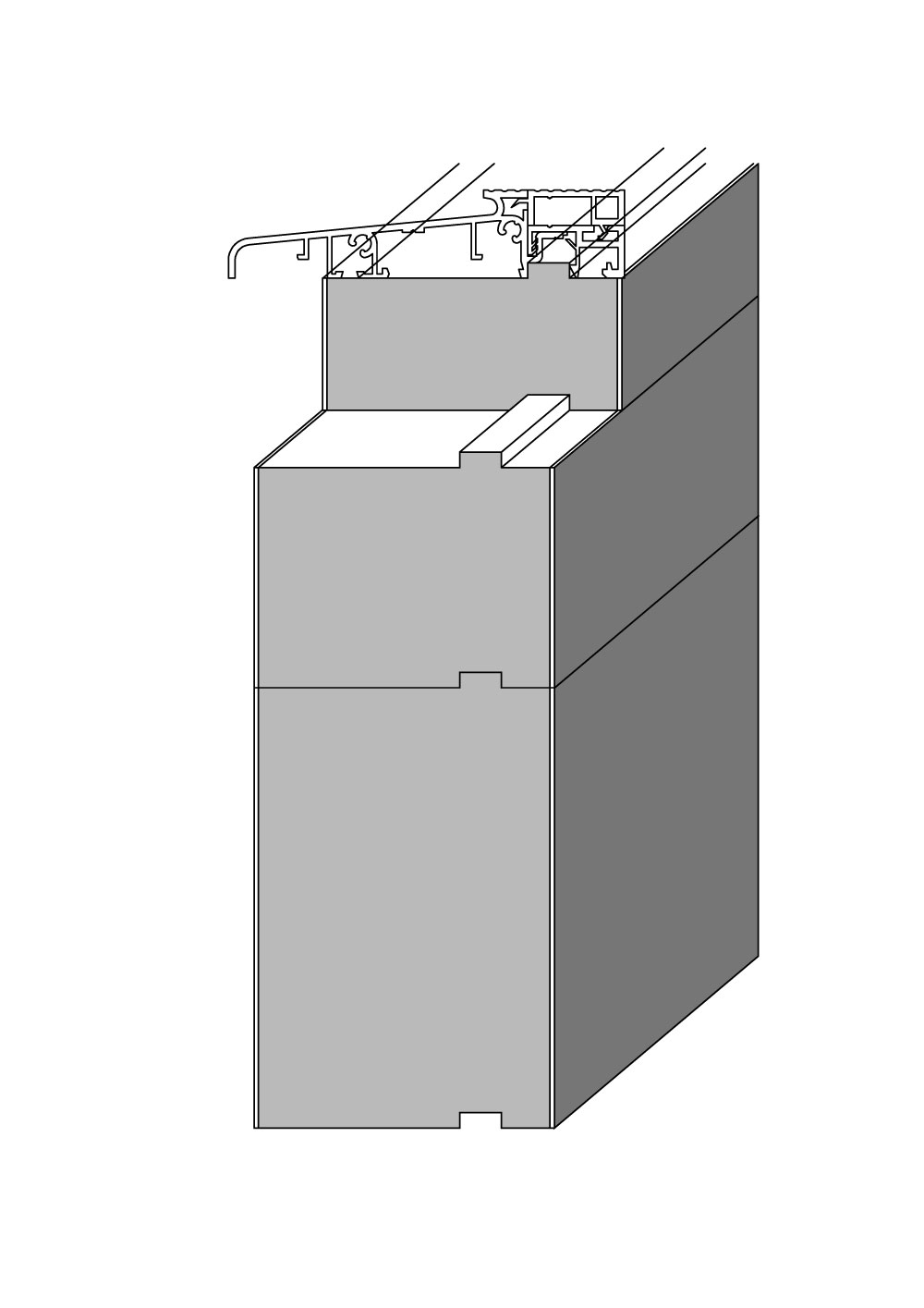

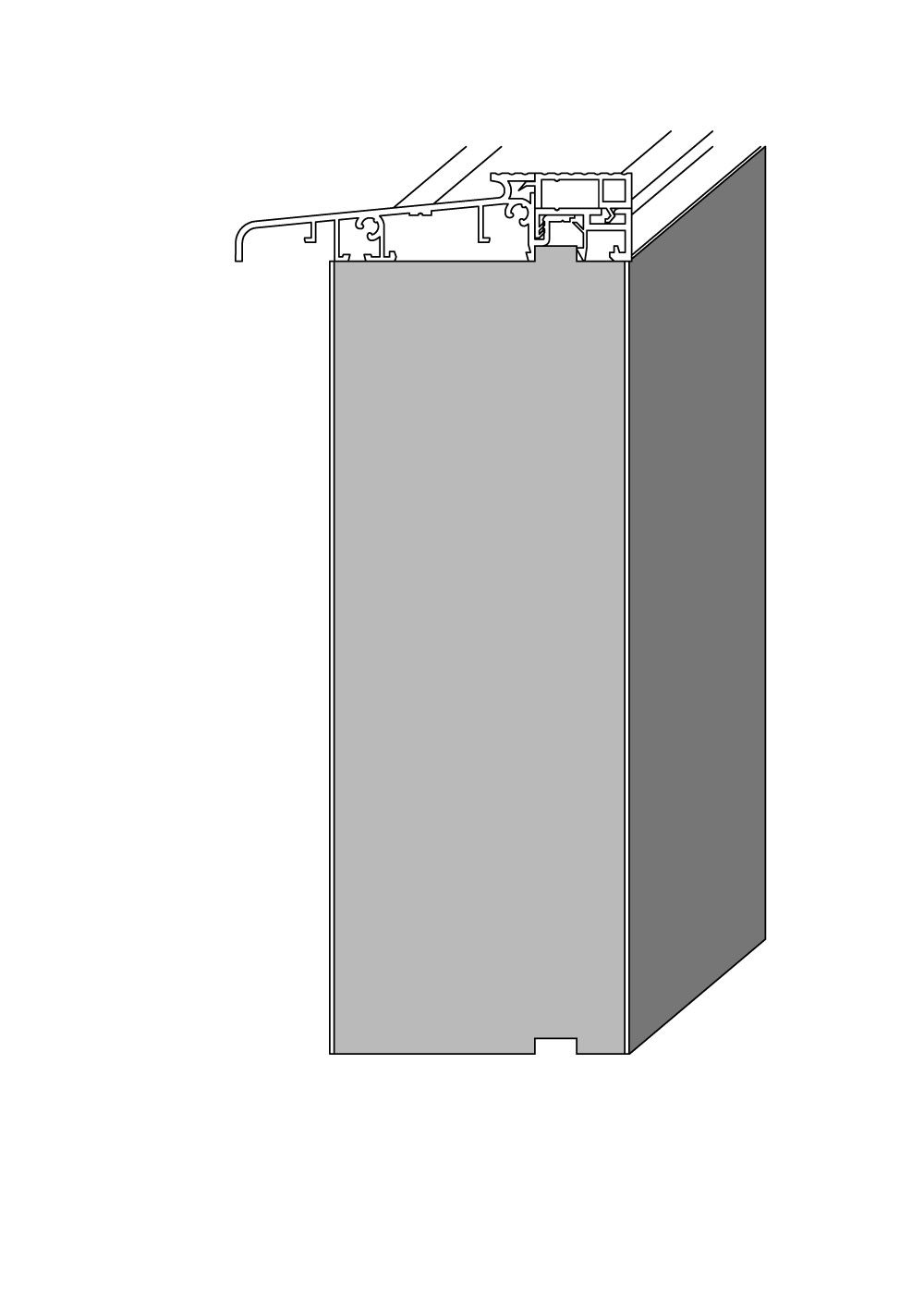

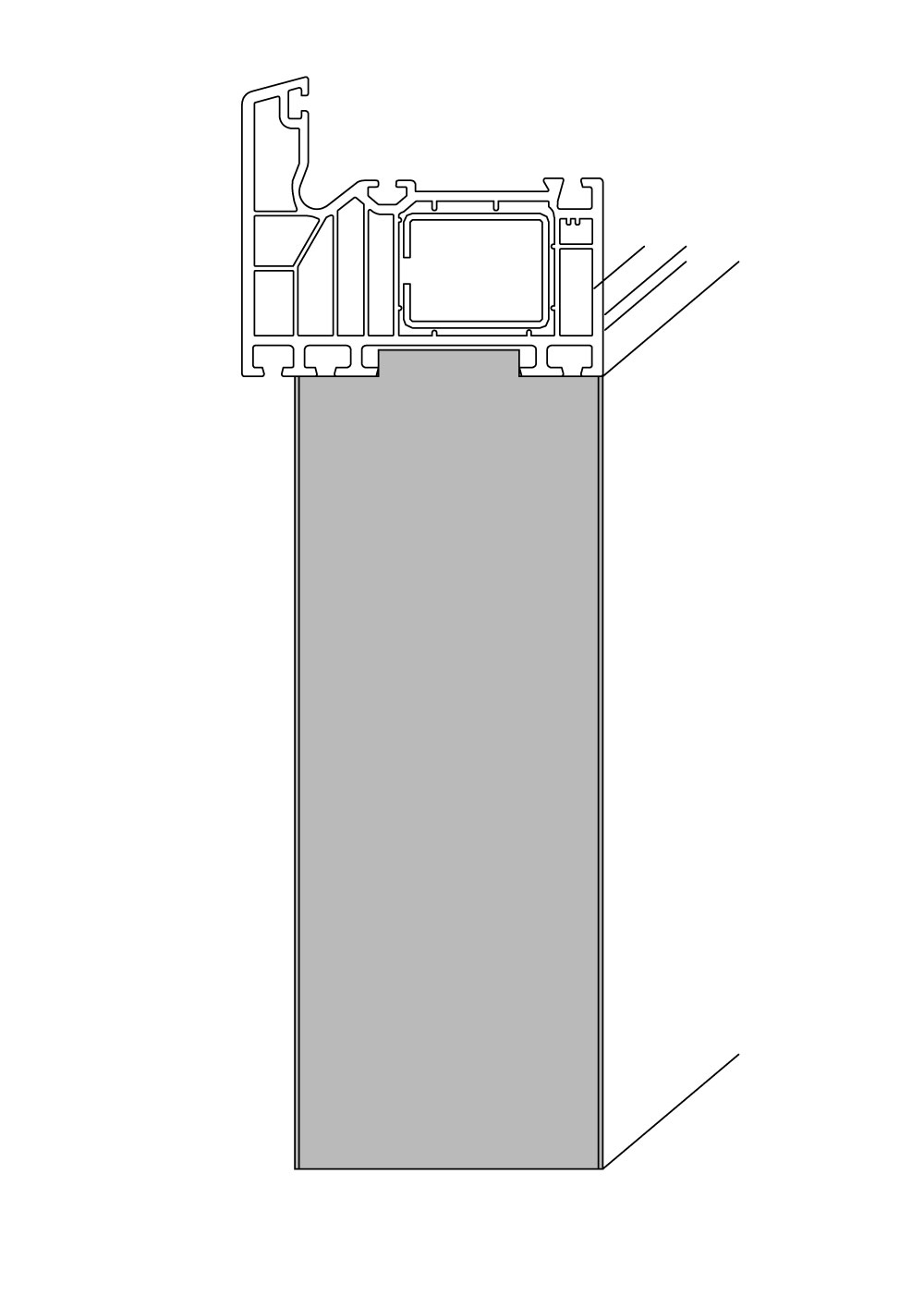

    Surface also available with PVC top layer (1 or 2‑sided)

    Paintable wood surface made from Accoya

    Profiling:

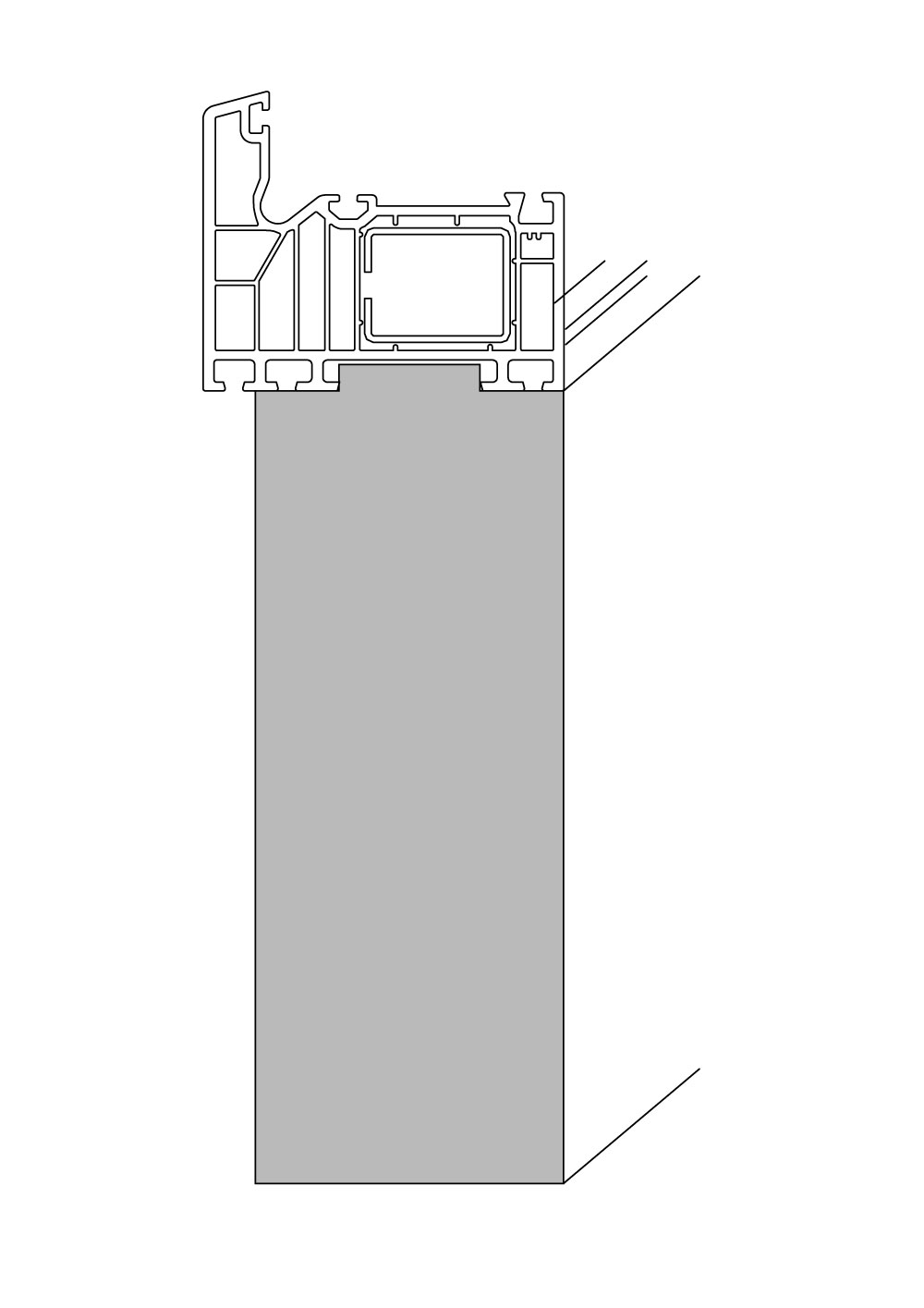

    available as rectangular or profile bar

    counter-milling on one side possible for all profile systems

    Stacking variants (tongue and groove plug-in connection) possible

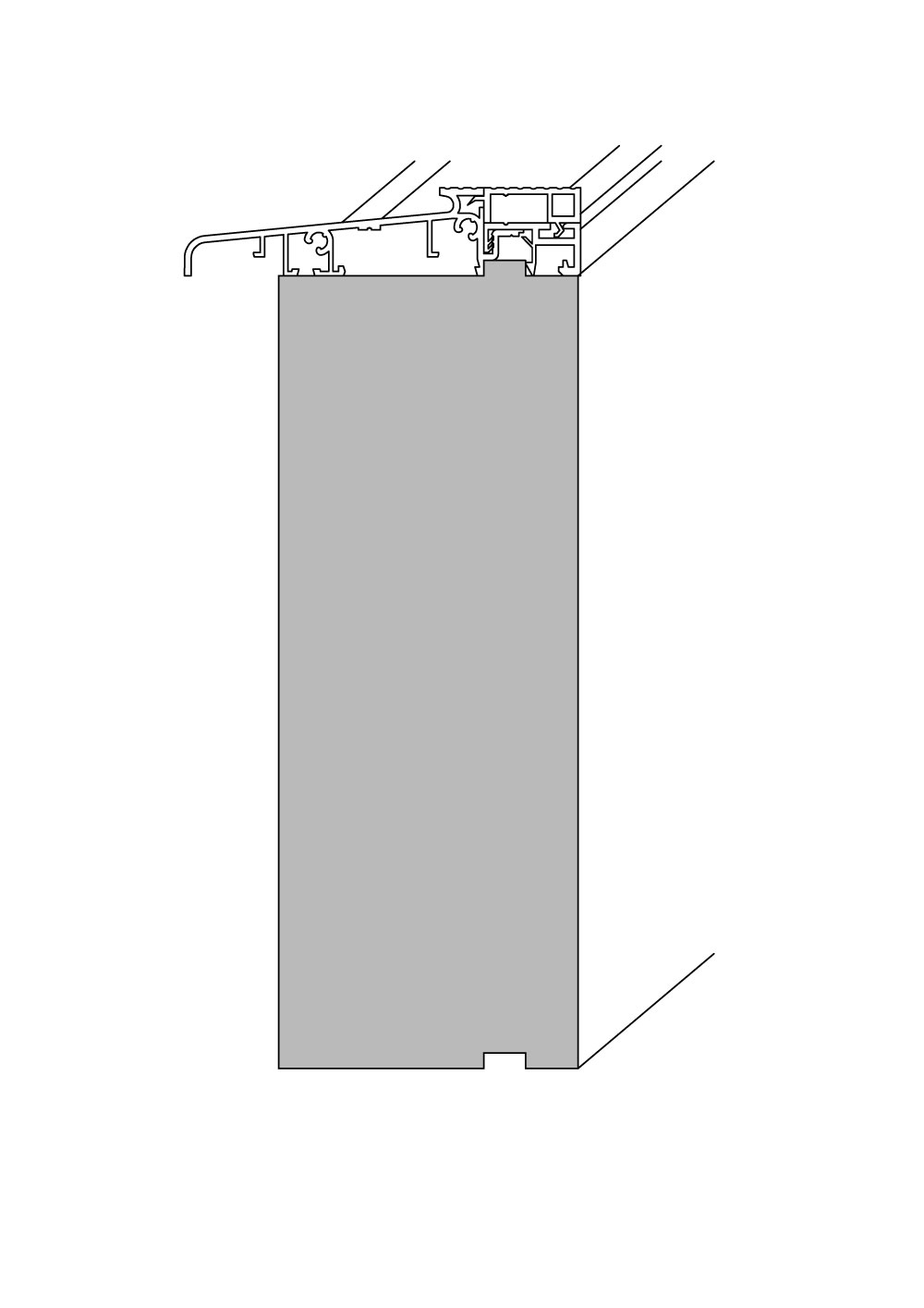

    we produce the substructure profile for your threshold

    Thermal insulation

    A high thermal insulation value is a critical feature of modern substructure insulation profiles. With a lambda value of 0.045 W/mK, CFeco UDPs achieve optimum results here too.

    Technical data

    * any thickness available

    Diversity

    Dimensions

    COMPACFOAM Substructure insulation profiles are not only available in the standard length of 2350mm, but in any desired length up to 6m.

    Coating

    On request, the substructure can be provided with a PVC coating on one or both sides.

    Flexibility

    You can achieve maximum flexibility by purchasing panels that you cut and profile yourself in your workshop.

    Profiling/contour

    There are no limits when it comes to profiling. Individual tools are not absolutely necessary, which allows us to profile even small quantities cost-effectively. We supply the individual substructure for YOUR threshold.

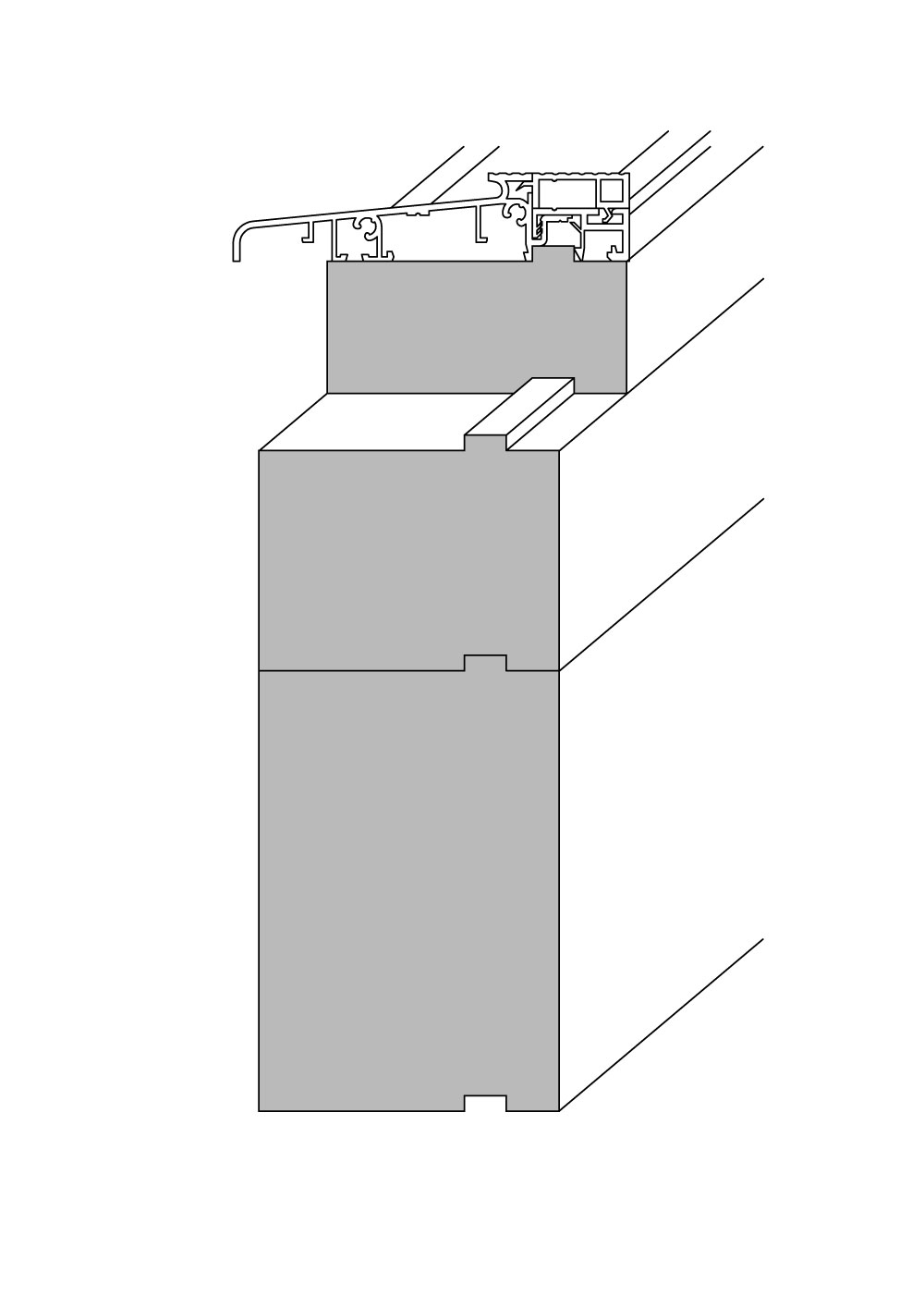

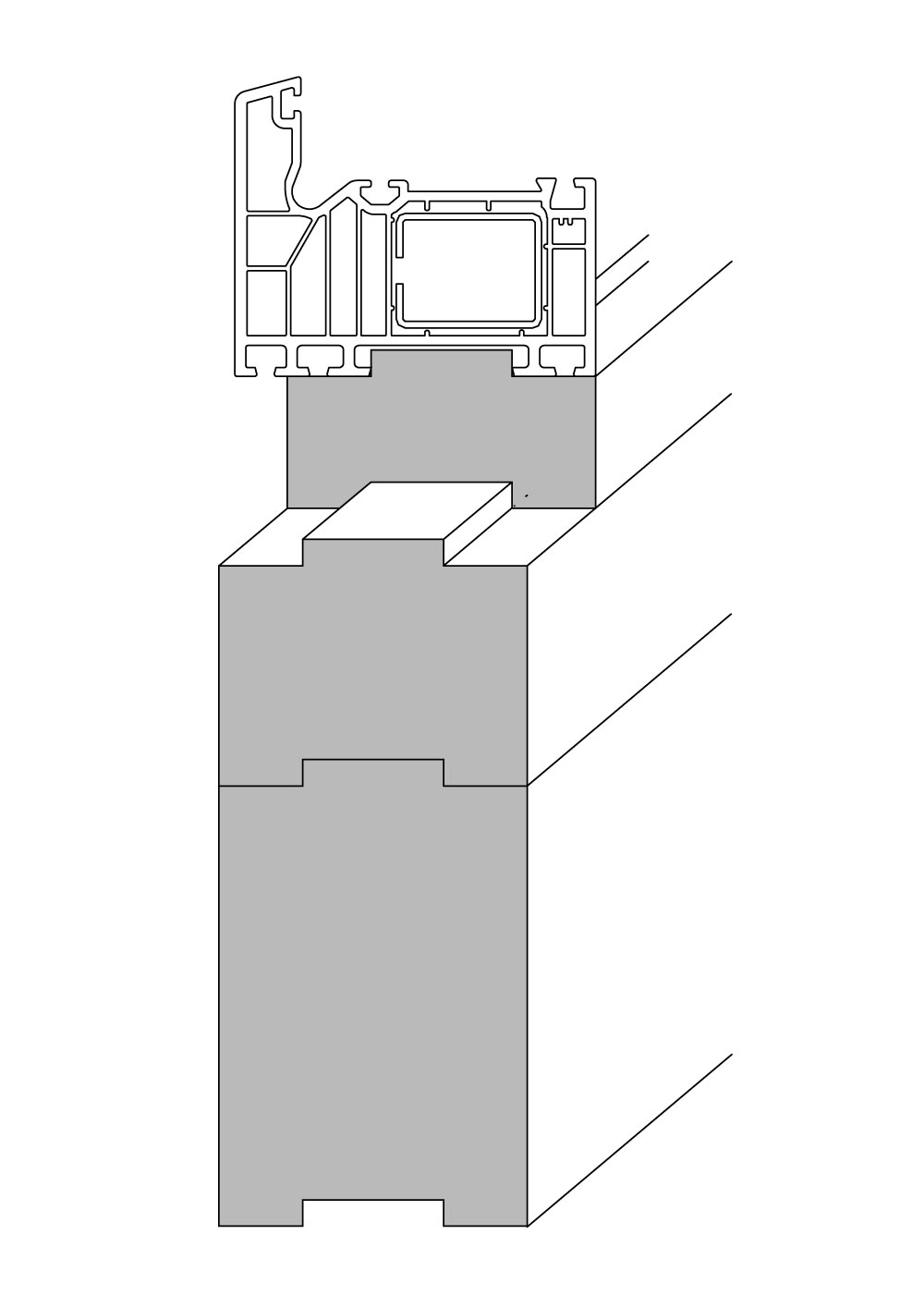

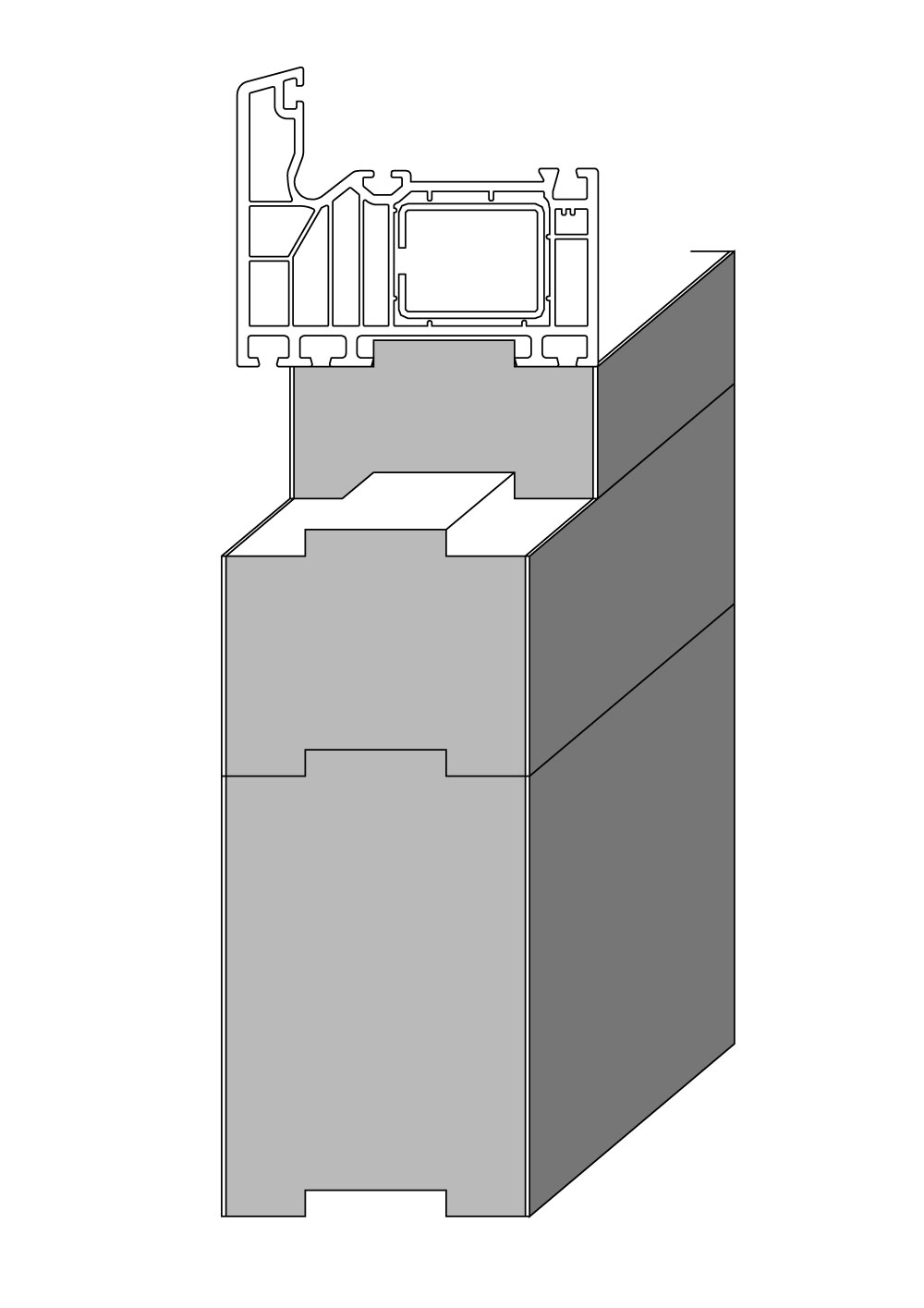

    The stacking contour (tongue and groove plug-in connection) allows different stand-off heights to be achieved flexibly.

    In addition, processing with our CNC 5-axis milling machine is possible up to 4700x600x300mm in one piece for highly complex and individual requirements.

    Examples

    Fall protection (ETB)

    The purpose of fall-protection glazing is to protect people from falling to a lower level. They should offer a low risk of injury in the event of an impact and ensure that the traffic area below is not endangered by broken glass. Examples of such glazing include balustrades, glass stair railings and floor-to-ceiling windows. The ETB guideline for fall-proof, floor-to-ceiling components requires a load-bearing capacity of at least 2.8 kN at the relevant fixing points.

    The COMPACFOAM system fulfills this requirement and thus offers maximum protection and safety with fall-proof elements.

    The substructure system must meet the following requirements for verification:

    Proof of sufficient anchoring of the screws in the substructure insulation profile.

    Proof of sufficient bending strength of the mounting angle.

    Proof of a sufficiently strong connection of the window system to the substructure profile.

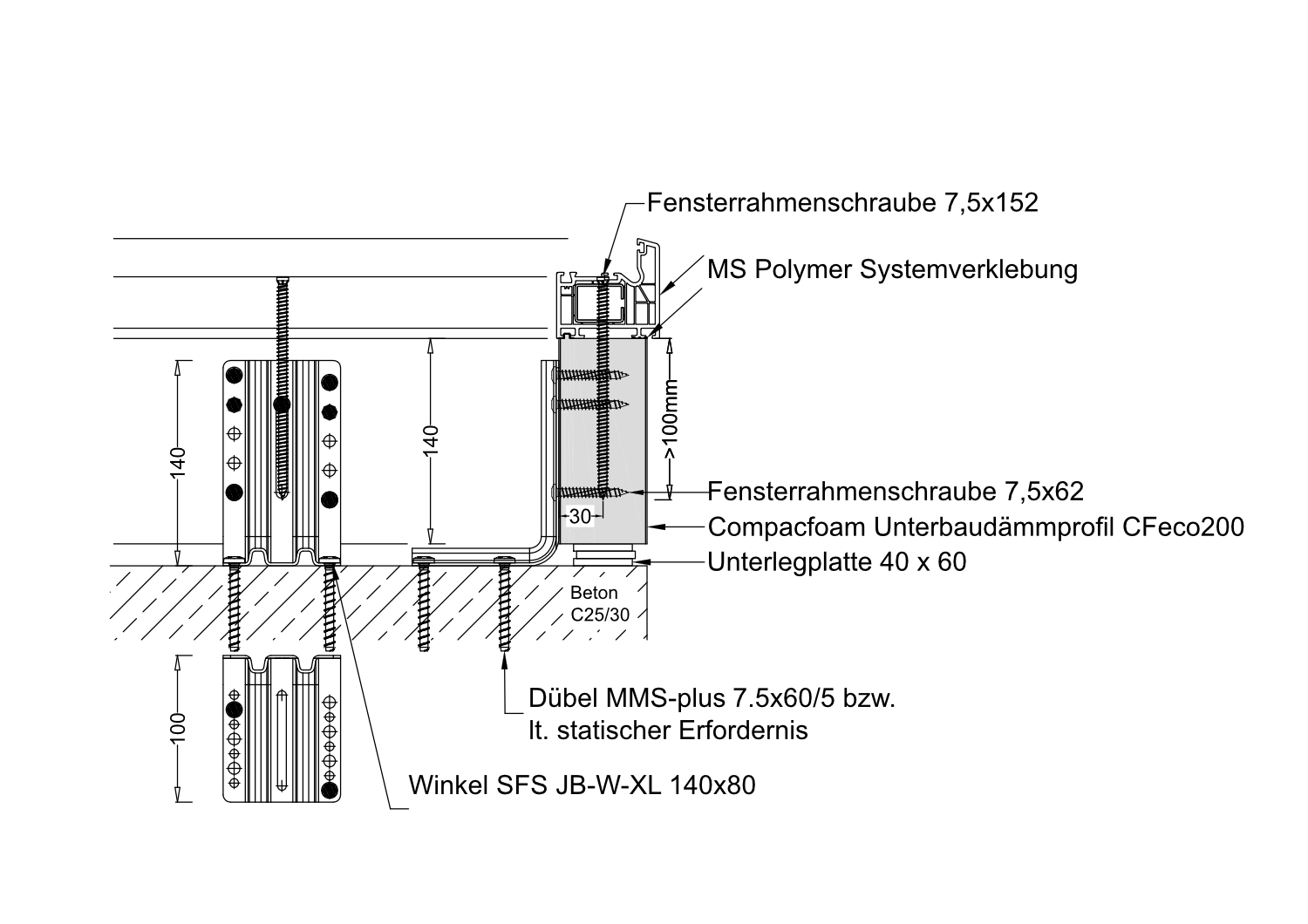

    With the COMPACFOAM substructure system, there is an individually tested system for all installation heights up to 240 mm that demonstrably fulfills all requirements.

    Sound insulation

    Complex projects sometimes also require verification of the sound insulation of the substructure profile. Test results are available for various material thicknesses based on EN ISO 10140-2. For increased requirements, superstructures with sound insulation foil on the room side were also tested.

    Structural waterproofing

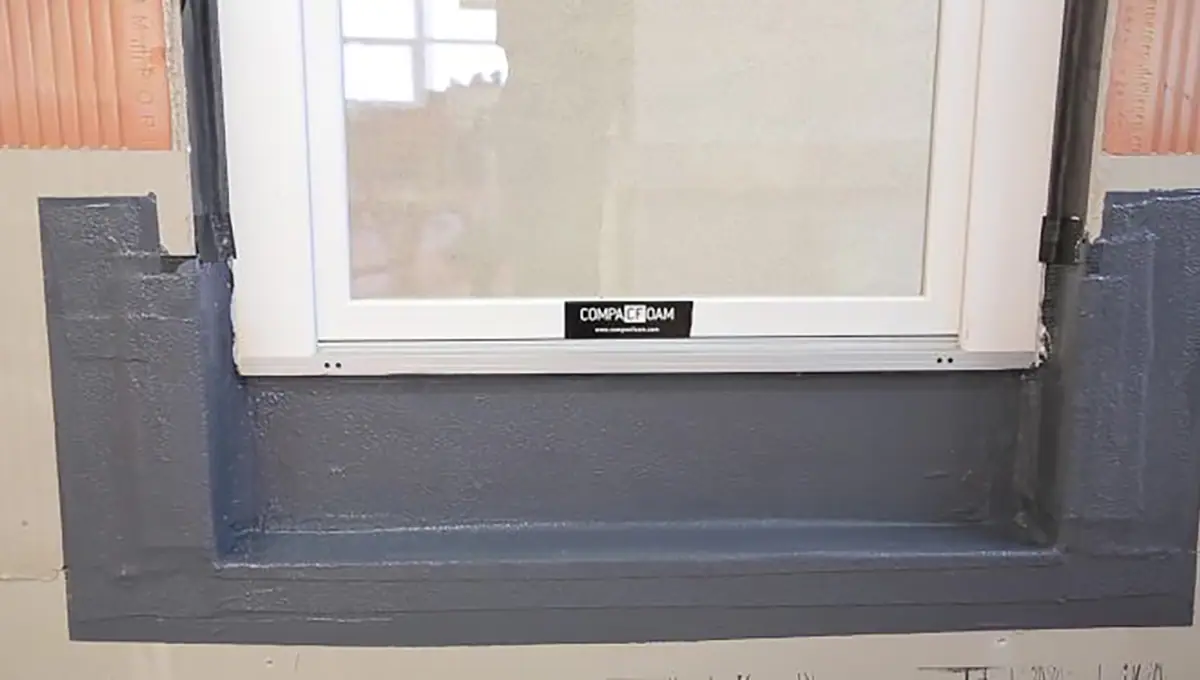

    The connection of floor-to-ceiling window and door elements to the adjoining components is one of the most important interfaces of the building envelope. The connection must be made with a waterproof material. Liquid plastics or bitumen membranes are usually used for this purpose. With COMPACFOAM, a secure and permanent connection with liquid plastics and bitumen membranes is possible.

    SEALING WITH LIQUID PLASTICS

    When waterproofing with liquid plastics, the installer must ensure that a compatible product is used. Under the following link you will find the current list of approved liquid plastics.

    All products on the list have been tested for adhesion and compatibility by the manufacturer. If a primer is listed, it must be used!

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content

    WATERPROOFING WITH BITUMEN SHEETING

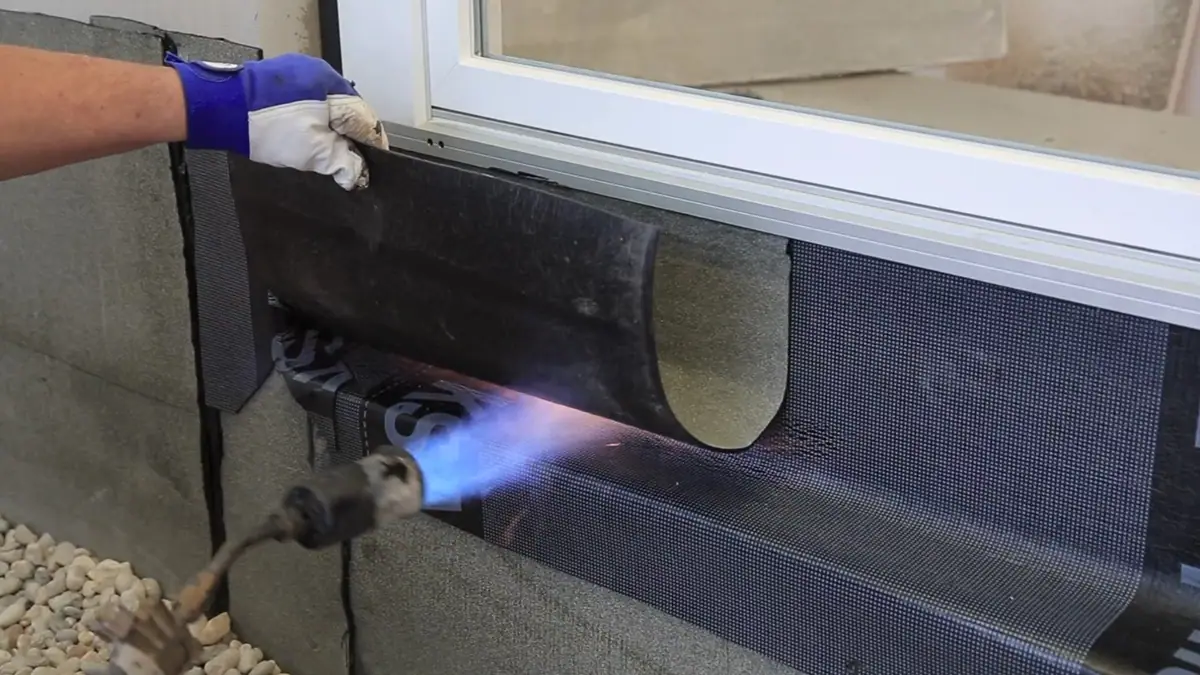

    When waterproofing with bitumen membranes using the scarfing method, the installer must ensure that the CF flooring profiles are only scarfed briefly. As a rule, the bitumen membrane is heated on the floor and then rolled onto the CF UDPs while hot and with a liquefied surface. It may be necessary to mechanically press or roll on the membrane to achieve sufficient adhesion. The membrane can then be scarfed over from the outside without damaging the substructure.

    As with all materials in reaction to fire class B1, the installer must of course ensure that he avoids direct contact between the building material and the flame in order to prevent the building material from igniting.

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content
    Saws

    COMPACFOAM can be easily cut to size using commercially available saws such as circular saws, pressure beam saws or hand-held circular saws. It is important to use saw blades with a wide tooth spacing and free chip space.

    For the cutting of COMPACFOAM we recommend saw blades with flat teeth and chip thickness limiter and very large tooth pitch. Optimum cutting results are achieved at 2000 rpm.

    Saw blade recommendation

    Diameter 300mm: 12-16 teeth

    Diameter 400mm: 16-20 teeth

    Diameter 450mm: 20-26 teeth

    To the product overview Saw blade recommendation

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content
    Sustainability

    With the help of a newly developed process, particle technology, we can recycle 100% of the offcuts of COMPACFOAM. CFeco200, the result of this process, offers the same good properties as COMPACFOAM: high strength with excellent thermal insulation.

    The COMPACFOAM substructure insulation profiles are produced in CFeco200 as standard. This means you are using a substructure system that is made from 100% recycled material. This increases the proportion of recycled material in construction and improves the eco-balance of your project and company. Because environmental protection means keeping things in circulation instead of disposing of expensive waste.

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content
    Assembly instructions

    • 1. Air and water tightness

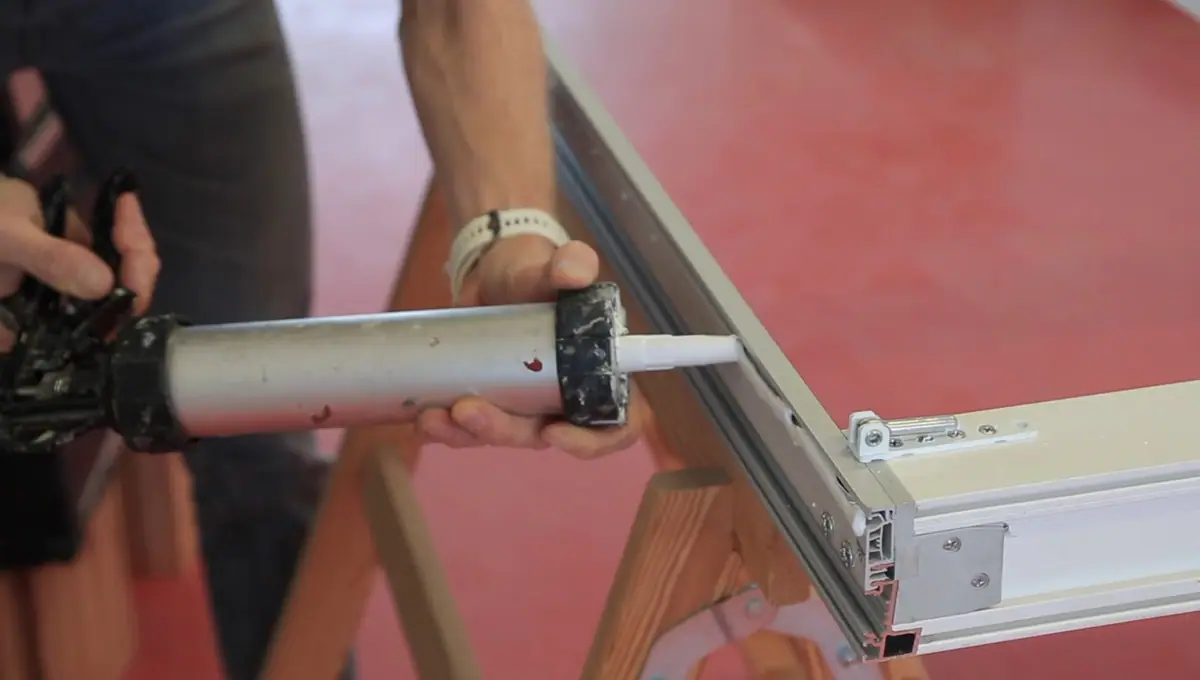

    Apply two beads of adhesive with a width of 8 mm to the underside of the door threshold.

    Use an MS polymer mounting adhesive for this.

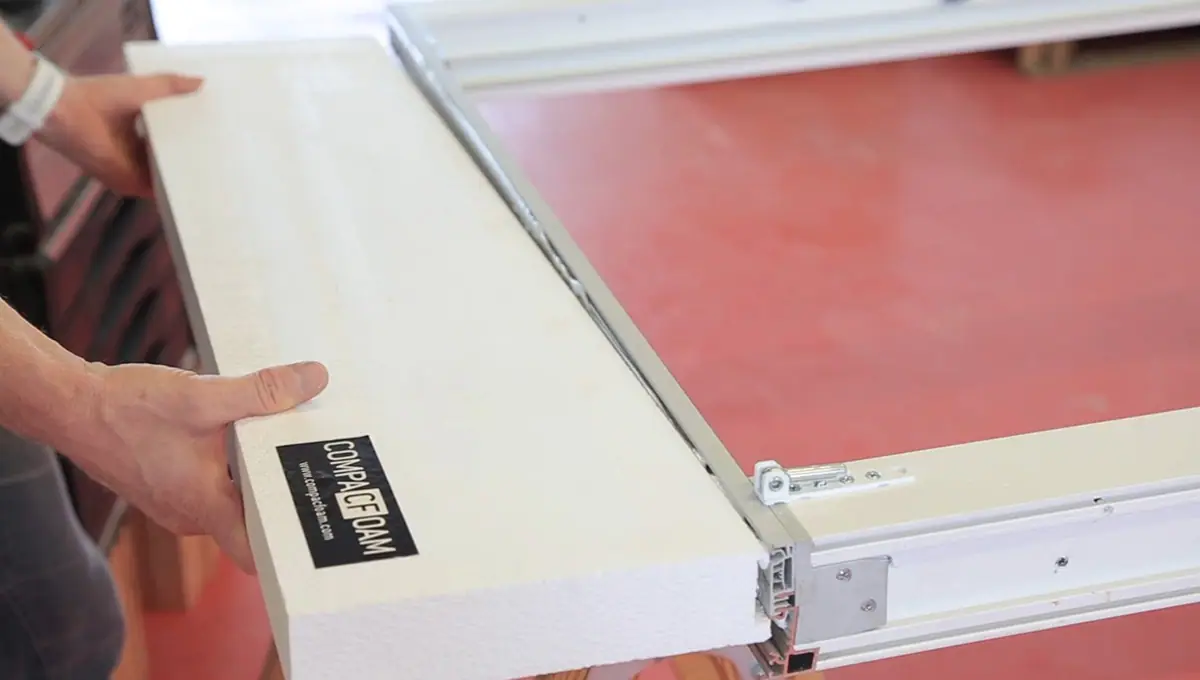

    • 2. Pre-assembly

    Press the substructure insulating profile against the door threshold.

    To avoid waste, you can butt joint the profile.

    The joint must be glued airtight and watertight using MS-Polymer assembly adhesive.

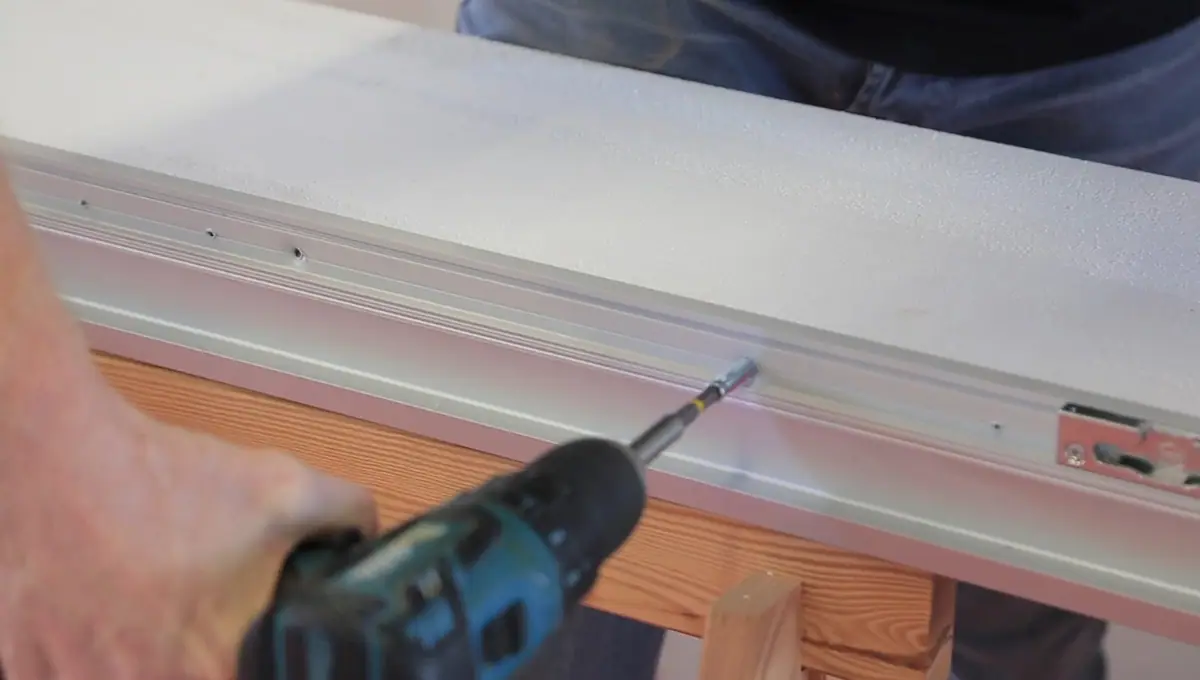

    • 3. Installation of the substructure insulation profile

    Screw the substructure insulating profile and the door sill together with window frame screws (Ø 7.5 mm). The screws can be screwed in from above or below – both variants are possible.

    The distance and anchoring length depend on the static requirements or the RAL installation guide.

    Pre-drilling in the insulation profile is not necessary.

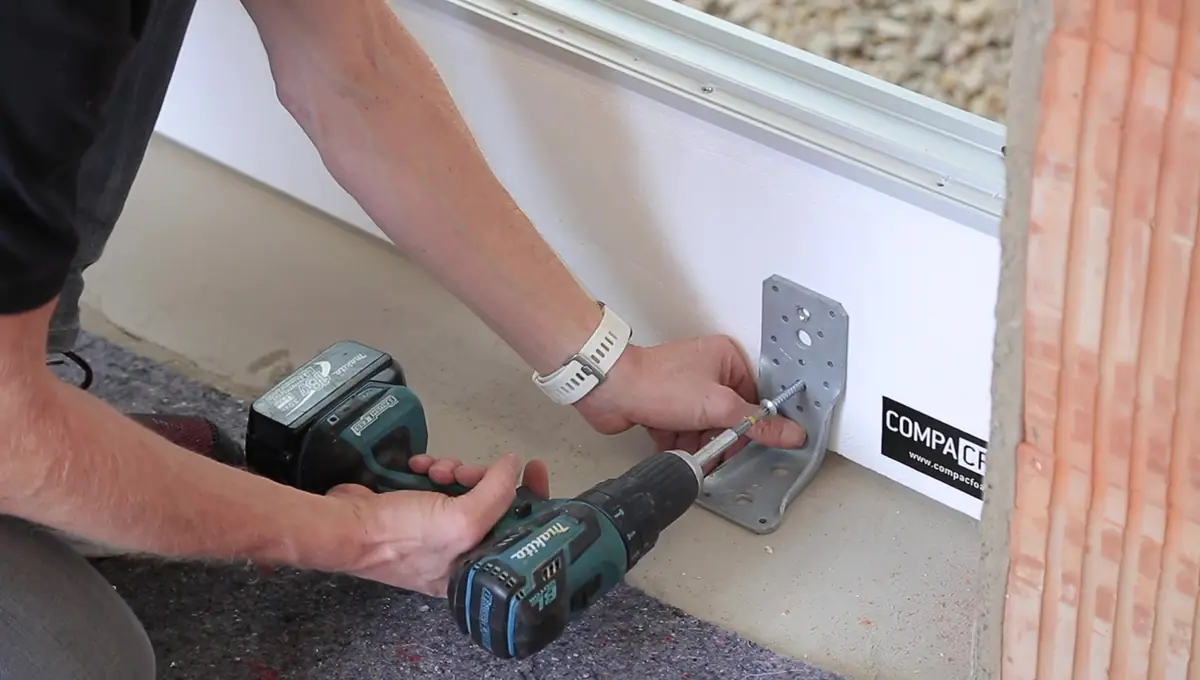

    • 4. Installation

    Mount the system in accordance with the recognized rules of technology on shims.

    For static load transfer, the screw connection is made with mounting brackets and window frame screws.

    Pre-drilling in the insulation profile is not necessary.

    • 5. External sealing

    Liquid plastic is particularly suitable for waterproofing.

    You can find a large number of tested and approved sealing products in the “Sealing” data sheet.

    Waterproofing with a bituminous membrane with a scarf finish is also possible without any problems if carried out properly.

    Further information:

    Further details on sealing can be found in the “Sealing” data sheet.

    To the data sheet

    Videos

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content

    Bitumen waterproofing with scarfing

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content

    Door sealing liquid plastic recessed installation

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content

    Construction material for sill & window substructure

    You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

    More Information
    Unblock content Accept required service and unblock content

    Substructure insulation profile as stacked profile or cut to size
